Stop the Flip: Why Your AC Keeps Tripping the Breaker

What It Really Means When Your AC Circuit Breaker Keeps Tripping

AC circuit breaker keeps tripping what it means is simple: your electrical system is detecting more current than it can safely handle, and it's shutting things down to protect your home from overheating wires, electrical damage, or fire.

Here are the most common reasons it happens:

• Dirty air filter - restricted airflow forces the blower motor to draw excess power

• Clogged condenser coils - trapped heat makes the compressor work harder and spike amperage

• Failing capacitor - a bad capacitor causes the motor to pull a massive surge of electricity on startup

• Grounded or failing compressor - internal electrical faults create an immediate short

• Loose or damaged wiring - worn connections cause arcing and heat buildup

• Faulty circuit breaker - the breaker itself may be worn out and tripping too easily

• Overloaded circuit - your AC is sharing power with too many other appliances

It's a hot afternoon in Pittsburgh, your AC kicks on, and within seconds — click. The breaker trips again. It's frustrating, but that breaker isn't the problem. It's the messenger. Something inside your system, or your electrical panel, is pulling more power than it should. And if you keep flipping that breaker back on without finding out why, you could be turning a fixable repair into a much bigger one — or worse, a safety hazard.

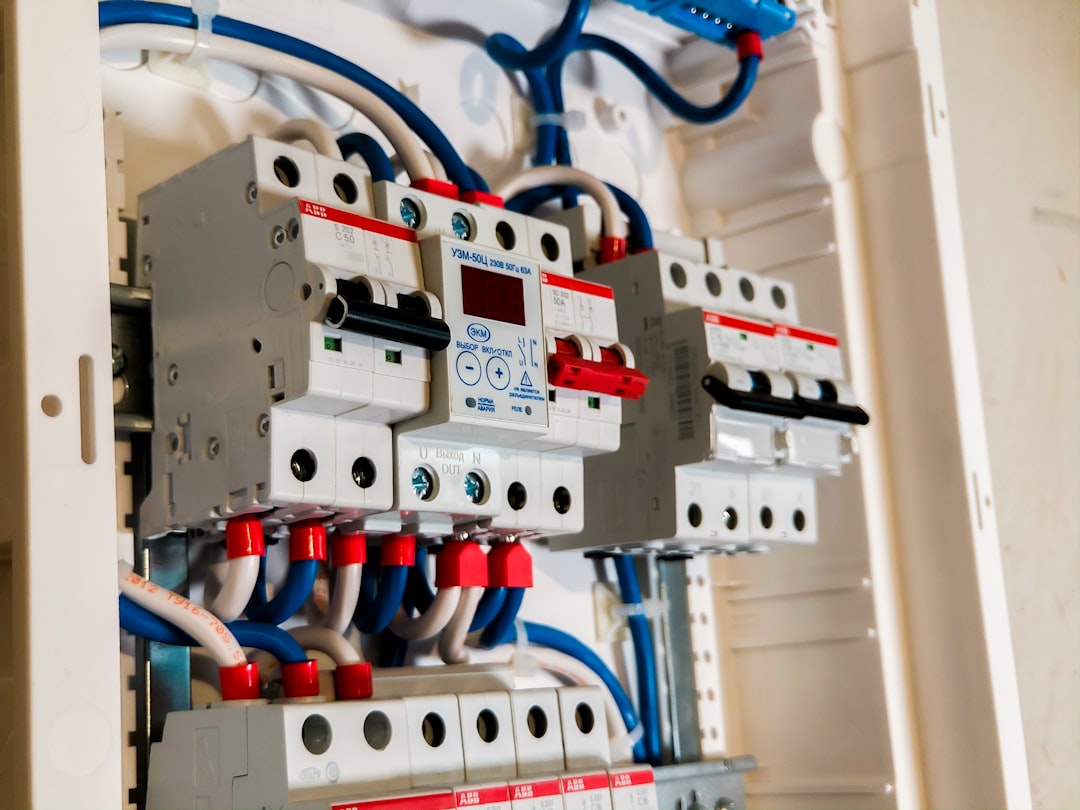

Understanding the Role of Your AC Circuit Breaker

To understand why your system is struggling, we first need to look at what that little plastic switch actually does. Think of your circuit breaker as a safety sentry for your home's electrical highway. It is an automatic switch designed to interrupt the flow of electricity if it becomes unsafe.

For most air conditioning units in Pennsylvania, you’ll see a "double-pole" breaker. These are larger than standard switches because central AC units require a significant amount of power. Every breaker has a specific amperage rating—for example, a 20-amp or 30-amp limit. If your AC suddenly tries to pull 40 amps due to a mechanical struggle, the breaker snaps to the "off" position instantly. This overcurrent protection is vital; without it, the wires in your walls would get hot enough to melt their insulation, leading to a house fire. Ensuring your home has Electrical Services for a Safe Home starts with respecting these safety limits.

AC Circuit Breaker Keeps Tripping What It Means for Your Home's Safety

When we tell our neighbors in Monroeville or Fox Chapel that their ac circuit breaker keeps tripping what it means is that the safety mechanism is working exactly as intended. However, it also signals a deeper issue that could be dangerous if ignored.

There are three primary electrical "events" that trigger a trip:

1. Overload: This is the most common. It happens when the AC is working way too hard and drawing more current than the breaker allows.

2. Short Circuit: This occurs when a "hot" wire touches a neutral wire. This causes a sudden, massive spike in current. You might hear a "pop" or see a flash when this happens.

3. Ground Fault: This is a specific type of short circuit where electricity escapes its intended path and touches a grounded part of the unit or a ground wire. Interestingly, ground faults make up about 98% of all electrical faults.

Ignoring these trips can lead to electrical arcing—where electricity literally jumps through the air between connections. This creates intense heat. If you're curious about the mechanics of these failures, understanding What Causes Fuse Box Short Circuits can provide more context on how electrical paths fail.

Comparison: Circuit Overload vs. Ground Fault

• Primary Cause — Circuit Overload: AC drawing too much power due to strain — Ground Fault: Electricity touching a grounded surface

• Danger Level — Circuit Overload: High (Fire risk from heat) — Ground Fault: Extreme (Shock and fire risk)

• Common Symptom — Circuit Overload: Trips after running for 10-20 minutes — Ground Fault: Trips instantly upon startup

• Typical Fix — Circuit Overload: Clean filters/coils or repair motor — Ground Fault: Repairing damaged wiring or compressor

Mechanical Failures: Why Your AC Unit is Drawing Too Much Power

Often, the reason your ac circuit breaker keeps tripping what it means is not an electrical "ghost" but a physical, mechanical struggle. When your AC can't breathe or move heat effectively, it strains the motor. That strain translates directly into higher electricity usage.

Common mechanical triggers include:

• Restricted Airflow: Clogged filters or blocked vents.

• Blower Motor Strain: A motor that is seizing up or dirty.

• Dirty Condenser Coils: Mud, grass clippings, or dust coating the outdoor unit.

• Outdoor Fan Failure: If the fan stops, heat builds up rapidly in the refrigerant lines.

• Refrigerant Leaks: Low levels force the compressor to run longer and harder.

Can a Dirty Air Filter Really Cause an AC Breaker to Trip?

It sounds almost too simple to be true, but a $15 air filter can absolutely shut down a multi-thousand-dollar AC system. When a filter is packed with dust, the blower motor has to work twice as hard to pull air through it.

Think of it like trying to breathe through a thick pillow. Eventually, the motor overheats and draws excessive electricity to keep spinning. Furthermore, restricted airflow can cause the evaporator coil to freeze into a block of ice. This creates a vicious cycle of overheating and overworking that leads to a tripped breaker. We recommend checking your filter every month, especially during the humid July and August months in Pittsburgh.

The Impact of Dirty Condenser Coils on Electrical Load

The outdoor unit (the condenser) is responsible for releasing the heat collected from inside your home. If the coils are covered in dirt or debris, that heat has nowhere to go. This "insulation" effect forces the compressor to work at maximum capacity.

In April 2026, as you prepare for the summer, a quick visual check of your outdoor unit is essential. If the coils are filthy, the unit might draw 30 amps on a 20-amp breaker. This amperage spike is an immediate trip hazard. Regular annual maintenance is the best way to ensure these coils stay clean and your heat transfer efficiency remains high.

Electrical System Issues and Faulty Components

Sometimes the AC unit is fine, but the "pathway" the electricity takes is compromised. In older homes across areas like Swissvale or Penn Hills, the electrical infrastructure itself might be the culprit.

Vibration from the AC unit can, over time, loosen wire connections. Loose wires create resistance, and resistance creates heat. If you notice Electric Panel Buzzing Sounds, it is a clear sign that electricity is struggling to flow. Similarly, Warm Electric Panels Causes Solutions are important to investigate, as a panel should never feel hot to the touch.

As homes age, so do their electrical systems. It's important to look for Breaker Box Aging Signs Homes like Electrical Panel Rust and Corrosion, which can interfere with the breaker's ability to function correctly.

Signs of a Faulty Circuit Breaker Itself

Breakers don't last forever. The internal springs can weaken after years of use and heat exposure. If the breaker feels "mushy" when you flip it, or if it won't stay in the "on" position even when the AC is unplugged, the breaker itself is likely failed.

Watch out for:

• Burning Smells: A distinct ozone or plastic-burning odor near the panel.

• Hot to the Touch: The plastic casing of the breaker feels significantly warmer than the ones next to it.

• Visible Scorch Marks: Blackening around the wire connections.

If you suspect your breaker is the issue, Electrical Fuse Box Repair Made Easy (or a modern panel upgrade) is the necessary next step.

Compressor and Capacitor Failures

The compressor is the "heart" of your AC, and the capacitor is like its "battery boost" to get it started. If the capacitor fails, the compressor might struggle to start, drawing what we call "Locked Rotor Amps"—a massive surge of electricity that trips the breaker instantly.

A "grounded compressor" is a more serious failure where the internal motor windings have broken down and touched the metal side of the compressor. This creates a direct path to the ground and an immediate short circuit. This is often seen in Overloaded Circuits North Huntingdon Homes where older systems are pushed to their limits.

Troubleshooting and Prevention Strategies

Before you panic, there are a few things you can safely check yourself. Most of the time, the fix is simpler than you think. However, we always emphasize safety: if you see sparks, smell smoke, or feel heat, stop immediately and call for Electrical Services by Experts.

Troubleshooting Steps: What to Do When Your AC Circuit Breaker Keeps Tripping

If your breaker trips, follow these steps to safely diagnose the issue:

1. Turn off the AC at the Thermostat: Don't just flip the breaker back while the system is trying to run. Switch the thermostat to "Off" first.

2. Reset the Breaker: Go to your panel and flip the switch fully to "Off" and then back to "On." You should feel a firm click.

3. The 30-Minute Rule: Wait about 30 minutes before turning the AC back on. This allows the internal components to cool down and the system to reset.

4. Check the Filter: If the filter is dark or dusty, replace it immediately.

5. Inspect the Outdoor Unit: Ensure there are no leaves, tall grass, or debris blocking the airflow around your condenser.

6. Check for Other Loads: Ensure you aren't running a space heater, treadmill, or hair dryer on the same circuit. Understanding Fuse Box Issues can help you identify if the circuit is simply overloaded with too many gadgets.

When to Call a Pro for an AC Circuit Breaker Keeps Tripping

DIY troubleshooting has its limits. You should call an HVAC technician or an electrician if:

• The breaker trips immediately after you reset it and turn the AC on.

• You smell burning plastic or see smoke.

• You hear buzzing or clicking sounds coming from the electrical panel or the outdoor unit.

• You see visible wire damage (such as frayed wires from a weed whacker or rodent).

• The breaker trips multiple times a day, even after you've changed the filter.

For these complex issues, it's best to consult our Electrical experts to prevent further damage to your expensive AC system.

Frequently Asked Questions

Is it dangerous to keep resetting my AC breaker?

Yes, it is very dangerous. Every time a breaker trips, it is because it detected a hazard. If you keep forcing it back on, you are bypassing that safety feature. This can damage the wire insulation in your walls, lead to a fire, or completely burn out your AC compressor—which is one of the most expensive parts to replace.

Why does my AC trip the breaker only on hot days?

On extreme heat days, your AC has to work much longer cycles. This creates more heat within the electrical components. If your condenser coils are even slightly dirty, the high outdoor temperature makes it nearly impossible for the unit to shed heat, causing the amperage to spike and trip the breaker.

Can a professional tune-up prevent these trips?

Absolutely. During a professional maintenance visit, we clean the coils, check the refrigerant levels, test the capacitors, and tighten all electrical connections. Our April 2026 efficiency standards ensure that your system is running at its lowest possible amperage, which significantly reduces the risk of a mid-summer breakdown.

Conclusion

At Supreme Heating and Cooling, we’ve helped thousands of families in Pittsburgh, Bethel Park, and Murrysville stay cool without the stress of electrical failures. Understanding ac circuit breaker keeps tripping what it means is the first step toward a safer, more efficient home. Whether it's a simple filter change or a complex compressor issue, our personable and trustworthy team is here to provide the non-pushy, expert service you deserve.

Don't spend your summer flipping switches in a dark garage. Stop the flip and schedule your professional AC repair today to ensure your home stays comfortable and safe all year long.
